Interior grille ceiling WD8-MIX20

WD8-MIX20

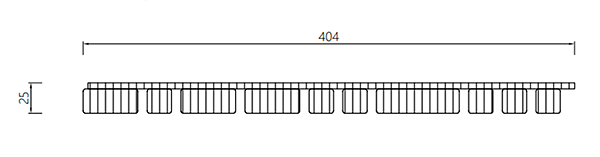

Dimensions 5800/2900x400x25
Color Carbonized color ; Custom Stain
Finishes UV清漆/丹麦WOCA油

Low 100% PuZhu

Density: ±680 kg/m3 (EN323)

 Indentation hardness - Gold hardness: 1,380 lbf

 Moisture content: 10%-14%

 Formaldehyde emission: ND (EN 717-1,ISO16000-9 &ISO16000-6)

 Total volatile Organic Compounds: ND (ISO16000-9:2006/COR1-2007&ISO16000-6:2011&ISO16000-3:2011)

 Bonding strength:

  The adhesive strength reached 10 (BS 1088-2);

   Adhesive Class 3 (EN314)

●  Mold resistance: Grade 0 (JIS Z 2911)

 Breaking strength: 111.75 N/mm2 (EN310)

 Elastic modulus: 9750 N/mm2 (EN310)

 Can provide FSC certificate -FSC certificate number: BV-COC-135631

 Screw bite force value :(EN13446)

   Long side: 31N/mm2 thermal expansion stability

●  Dimensional stability: (EN 318)

   Length variation: ± 0.9mm /m

   Thickness variation: ±1%

●  Thermal expansion stability: (ASTM E831)

   - 20 ~ 80 ° C: 7 (10-6 k - 1)

●   Anti-indentation performance measurement: (EN1534)

   Indentation hardness -- Brinell hardness (HB): 30 N/mm2

   Biological durability: Class 1-2 (EN350)

●  Fire rating: B-s1, d0 (EN13501)

●   Fire rating: Class 1 (BS476 Part 7)

●   Fire rating: Class A (ASTM E84)

●   Fire rating: 1010°C 120min (ASTM E119)
