● Horizontal slats are wider than they are deep creating a warm, more solid look

● Available in Fire retardant & exterior treatment as request, is suitable for exterior as well as interior space；

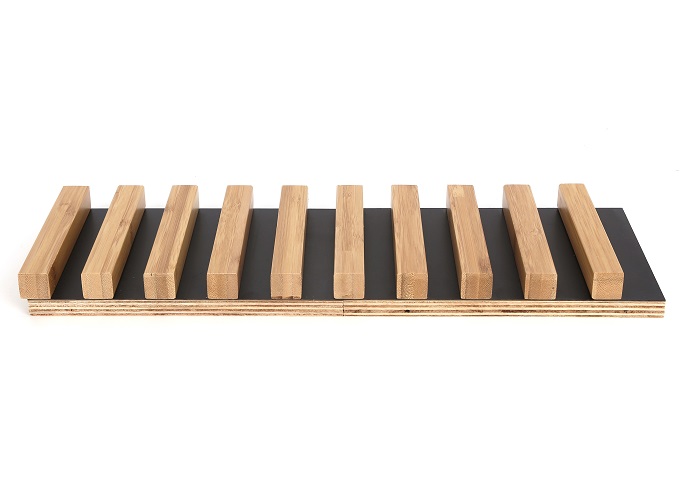

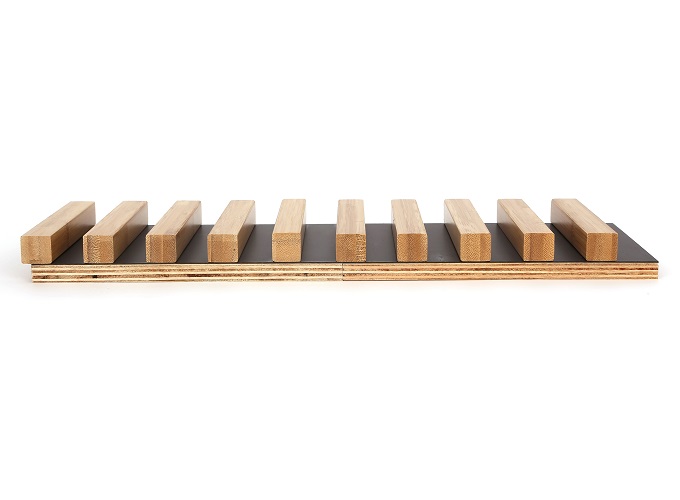

● Bamboo panels with aluminum / plywood backers easily install on standard suspension system

● Lighter weight (compared with strand woven bamboo) makes it easier to be hung up.

● Specially designed for special requirements

● 100% solid bamboo

● Density: ±680 kg/m3 (EN323)

● Janka hardness: 1,380 lbf

● Moisture content: 10%-14%

● Formaldehyde emission: ND (EN 717-1,ISO16000-9 &ISO16000-6)

● TVOC: ND (ISO16000-9:2006/COR1-2007&ISO16000-6:2011&ISO16000-3:2011)

● Bonding Quality:

  Bond quality value 10 (BS 1088-2);

  Bonding classes 3 (EN314)

● Fungus Resistance: Grade 0 (JIS Z 2911)

● Bending strength: 111.75 N/mm2 (EN310)

● Modulus of Elasticity: 9750 N/mm2 (EN310)

● FCS Certified available on request--FSC Certificate Code: BV-COC-135631

●  Screw retentivity rate:(EN13446)

   Edge withdrawal-Long side: 31N/mm2

   Edge withdrawal-Short side: 36 N/mm2

   Surface withdrawal: 44 N/mm2

●   Screw retentivity rate: 31 N/mm2 (EN 13446)

●   Water absorption rate: (EN 318)

   Change in length：±0.9 mm/m

   Change in thickness: ±1%

●   Heat expansion Dimensinostability data: (ASTM E831)

   -20~80 °C: 7 (10-6K-1)

●  Determination of Resistance to Indentation: (EN1534)

  Brinell hardness (HB): 30 N/mm2

● Durability：Class 1-2 (EN350)

●  Fire-resistant available to B-s1, d0 class on request (EN13501)

●  Fire-resistant available to Class 1 on request (BS476 Part 7)

●  Fire-resistant available to Class A on request (ASTM E84)

●  Fire-resistant available to 1010°C 120min on request (ASTM E119)

●  Contribute to LEED

●  Contribute to BREEAM

●  Contribute to BEAM Plus

Deliveried with individual wrap and pallets. Container transportation is proposed.  Stored in a clean, dry and well-ventilated place.

Decorative Applications

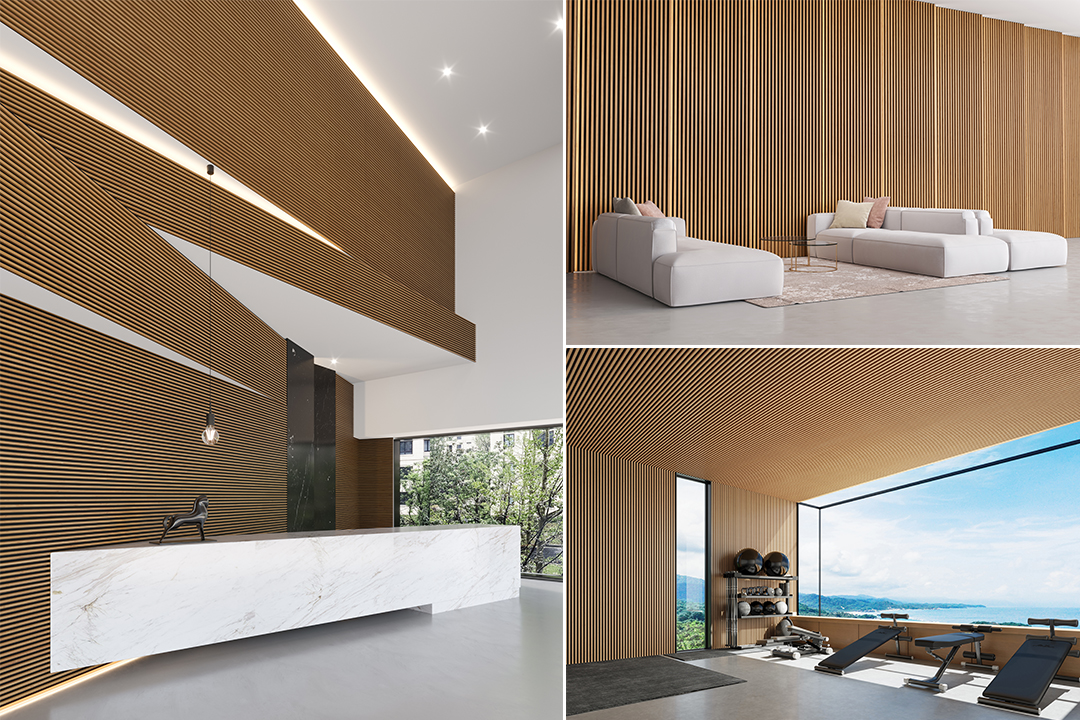

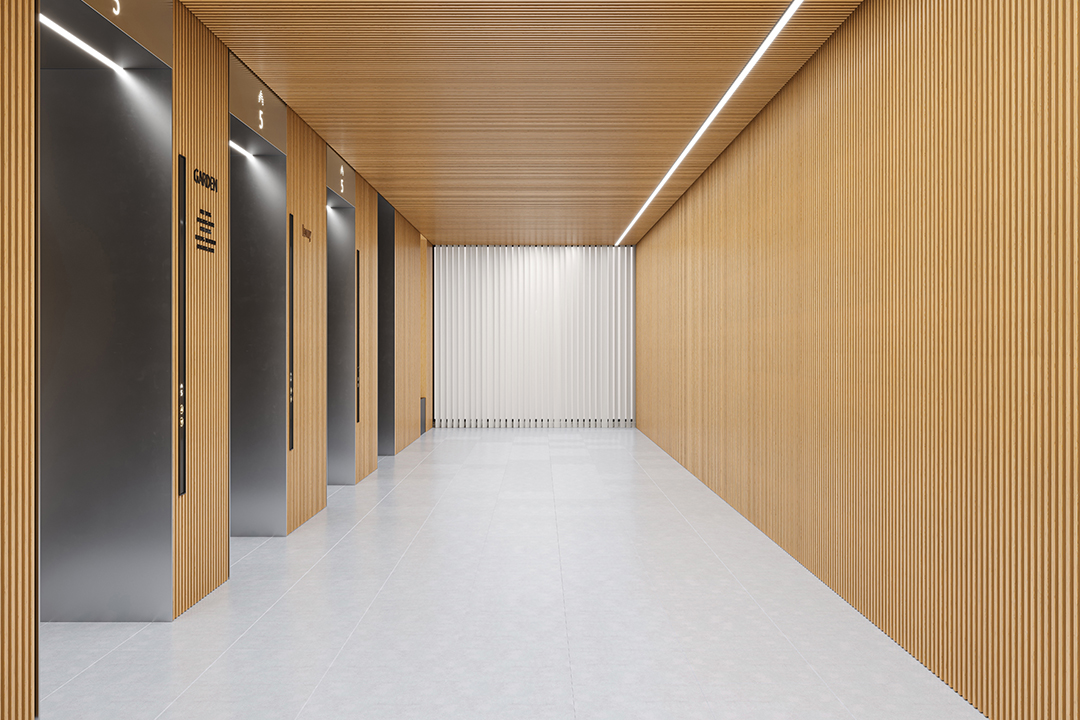

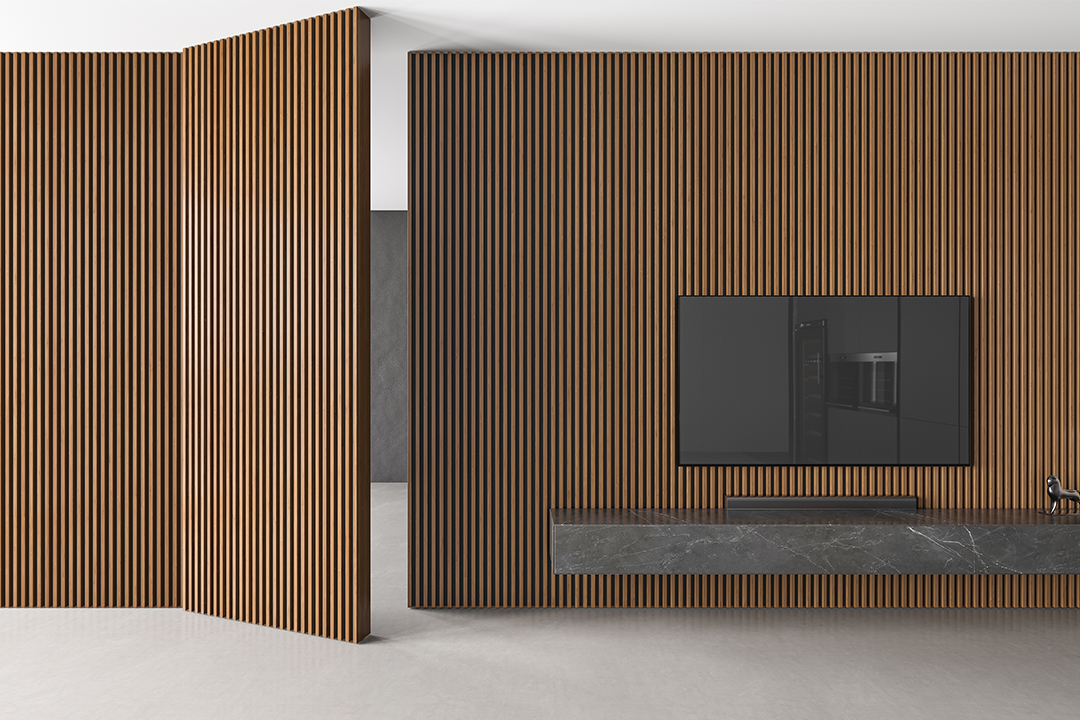

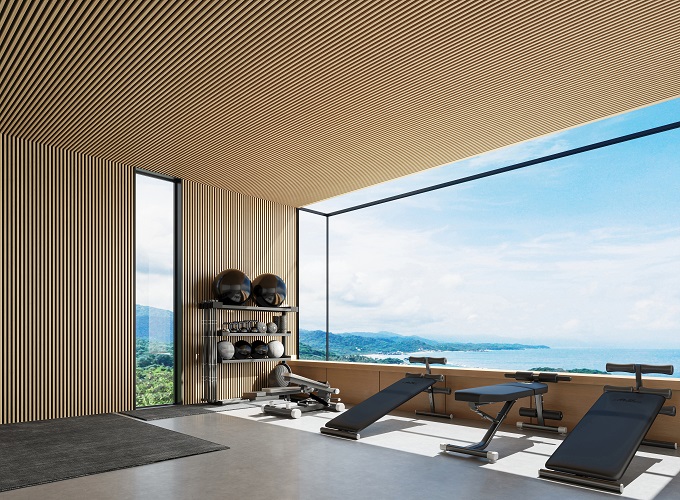

These products have been used worldwide in various applications,including indoor ceiling, indoor & outdoor partition, corridor roof , facades and fence.
