Bamboo Acoustic Wall panel W-AVC13-3

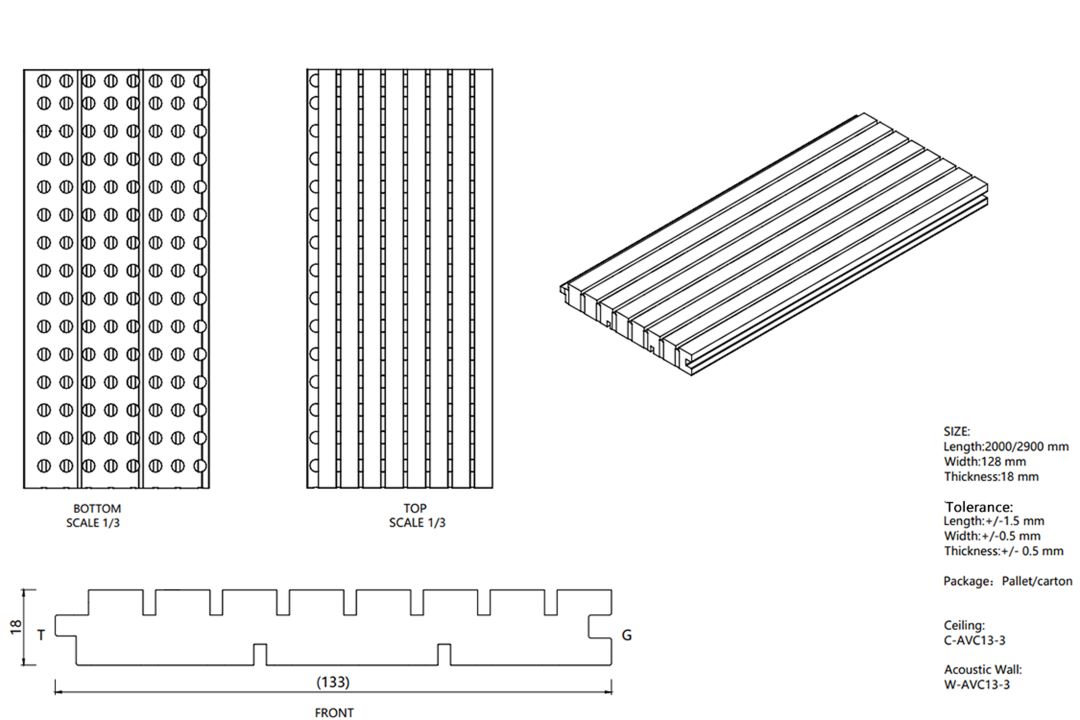

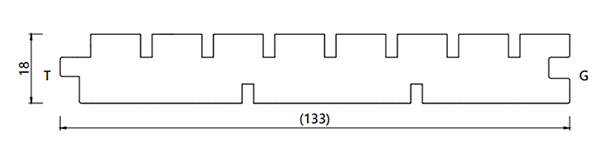

Dimensions2000/2900x128x18
ColorCarbonized color /Custom Stain
FinishesUV varnish

Greezu Bamboo Cladding Advantages

 Greezu Bamboo wall panels offer high architectural performance with a modern  linear clean style ;

 Available in Fire retardant & exterior treatment as request, is suitable for exterior as well as interior space

 We have a patent control continuous non-length-limited lamination system as the support to our linear,

  which gives a luxurious appearance with less seams or joints;

 Reduces the usage of installation accessories and workload thus cutting down installation cost.


 100% solid bamboo

 Density: ±680 kg/m3 (EN323)

 Janka hardness: 1,380 lbf

 Moisture content: 10%-14%

 Formaldehyde emission: ND (EN 717-1,ISO16000-9 &ISO16000-6)

 TVOC: ND (ISO16000-9:2006/COR1-2007&ISO16000-6:2011&ISO16000-3:2011)

 Bonding Quality:

   Bond quality value 10 (BS 1088-2);

   Bonding classes 3 (EN314)

 Fungus Resistance: Grade 0 (JIS Z 2911)

 Bending strength: 111.75 N/mm2 (EN310)

 Modulus of Elasticity: 9750 N/mm2 (EN310)

●  FCS Certified available on request--FSC Certificate Code: BV-COC-135631

●  Screw retentivity rate:(EN13446)

   Edge withdrawal-Long side: 31N/mm2

   Edge withdrawal-Short side: 36 N/mm2

   Surface withdrawal: 44 N/mm2

●  Screw retentivity rate: 31 N/mm2 (EN 13446)

●  Water absorption rate: (EN 318)

   Change in length:±0.9 mm/m

   Change in thickness: ±1%

●  Heat expansion Dimensinostability data: (ASTM E831)

   -20~80 °C: 7 (10-6K-1)

● Determination of Resistance to Indentation: (EN1534)

  Brinell hardness (HB): 30 N/mm2

● DurabilityClass 1-2 (EN350)

We're well-known as one of the leading bamboo wall panels suppliers in China, specialized in providing high quality customized products. For quotation and free sample, contact us now.



Packing and Stock


Dimensions    (mm)ItemsPcs/CtnKgs/CtnCtn/PalletPcs/Pallet
2000/2900x128x18W-AVC13-3////
